Rich Solar  |  SKU: RS-H12K

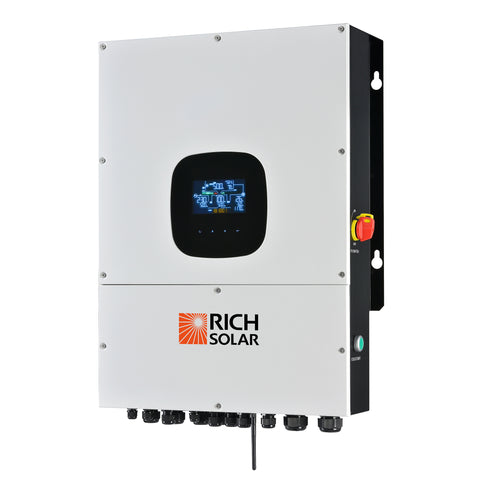

Rich Solar Nova 12k Pv Hybrid Inverter | All-in-one Solar Inverter | 12000w Pv Input | 10000w Output | 48v 120/240v Split Phase

$2,849.99 $3,277.99

Estimated Shipping Widget will be displayed here! (with custom color)

Authorized dealer

Your #1 trusted source for Rich Solar products.

Shipping info

Most orders are processed and shipped from our USA warehouse within 1 to 3 business days of an order being placed (excluding weekends and holidays).

If, in the case, the item has a different handling and/or shipping estimate, it will be clearly displayed under the Add to cart button.

Click here to view our full shipping policy

Returns info

Eligible for returns: Yes

Time frame allotted: 30 days from the date of delivery

*Item(s) must be in new and unused condition to be eligible

To learn how to request a return please visit our return & refund policy:

Click here to view our full return & refund policy

Photo of Friendly Avanquil Customer Support Representative

Need assistance? We're happy to help!

Phone Icon Call us Text Icon Text us Customer Support IconText or Call: (888) 808-5549

Description
Features:
  • Built-in Arc Fault detection (AFD) and Rapid Shutdown (RSD)
  • P65 waterproof and dustproof for various working conditions
  • Support multiple input & output-Split phase 208/240Vac or single phase 230Vac.
  • Built-in AC coupled function
  • Built-in Wi-Fi for mobile monitoring (APP is available).
  • Accepts second input power source, generator input compatible.
  • Optional external CT sensor to guarantee 100% self-consumption.
  • Built-in communication port for BMS (RS485).
  • User-adjustable charging current and voltage
  • Parallel operation up to 6 units.

Documentation


RICH SOLAR NOVA 12K PV Hybrid Inverter

Specifications


RICH SOLAR NOVA 12K PV Hybrid Inverter

Specifications
ModelRS-H12K
Maximum PV Input Power12000W
PARALLEL CAPABILITYYes, 6 units
INPUT
Maximum PV input Power12000W
Maximum DC Voltage600VDC
Start-up Voltage/initial Feeding Voltage125VDC/160VDC
MPP Voltage Range120VDC-550VDC
Number of MPPT Trackers/Maximum Input Current2/18A
OUTPUT
Rated Output Power10000VA/10000W
Nominal Output Voltage120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
Output Voltage Range105.5-132VAC per phase
Nominal Output Current41.5A per phase
BATTERY
Battery DC Voltage Range40-62VDC
Maximum Solar Charging Current200A
Maximum AC Charging Current200A
Maximum Charging Current200A
OPERATING ENVIRONMENT
Operating Temperature Range-25°C to 60°C(>45°C derating)
Protection DegreeIP 65
Communication PortRS232,RS485,WI-FI, USB
PHYSICAL
Dimension. DxWxH(mm)215.5x575x715
Net Weight45 (kg)/99.2(lb)

What's Included

NOVA 12K PV Hybrid Inverter

1 x
